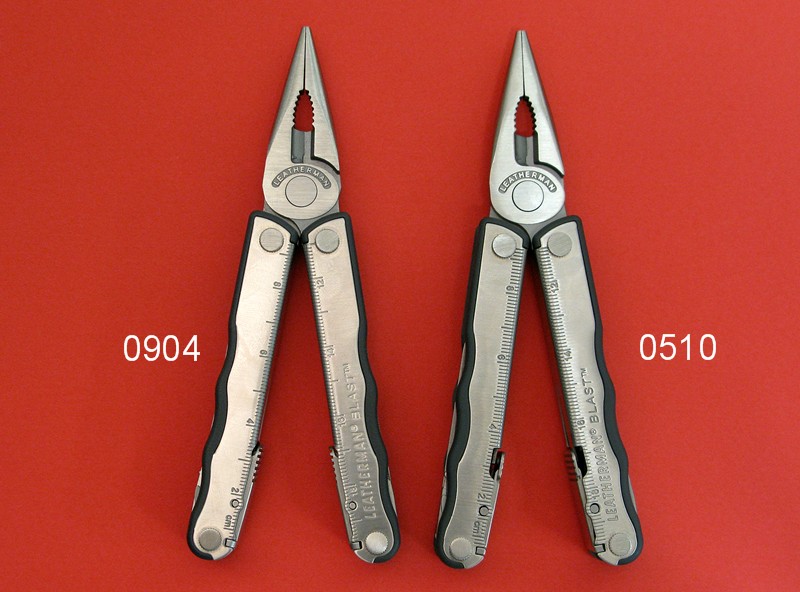

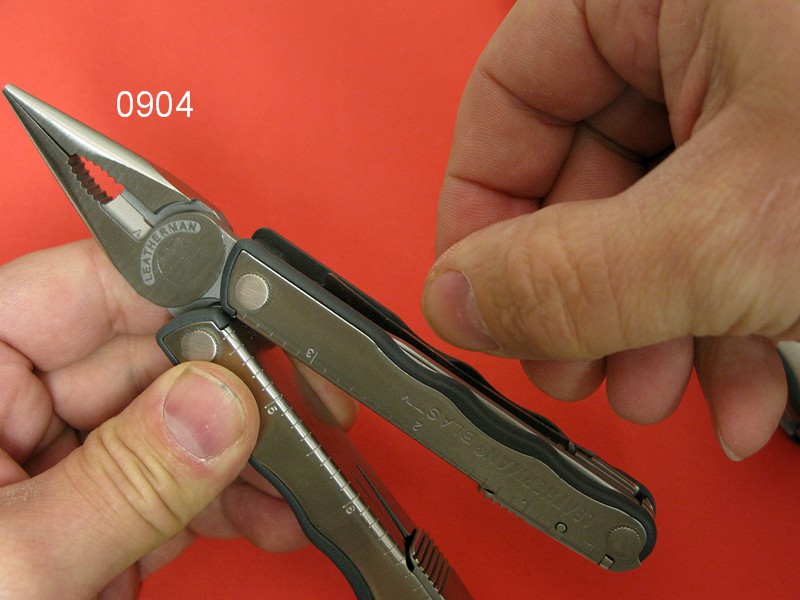

Early model (0904) on the left, later model (0510) on the right
|
|

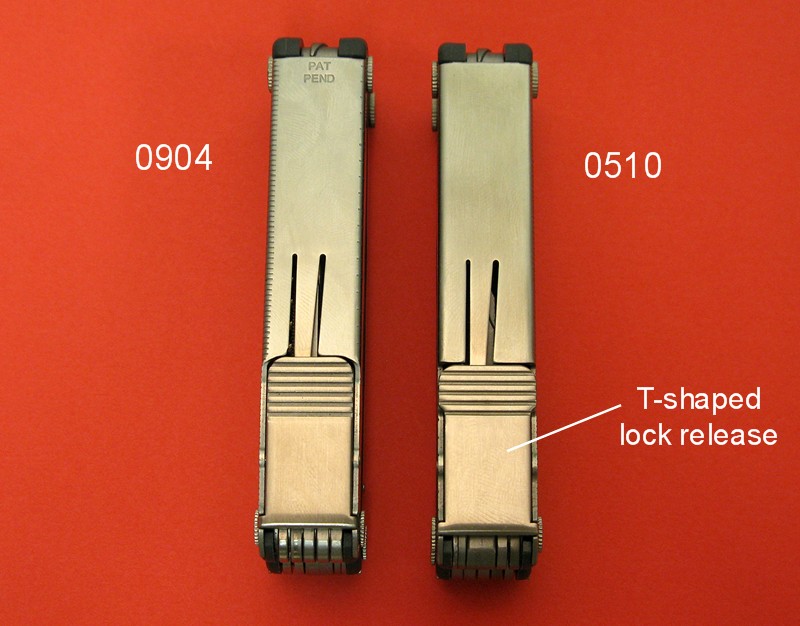

Note T-shaped lock release lever, added around 2009
|
|

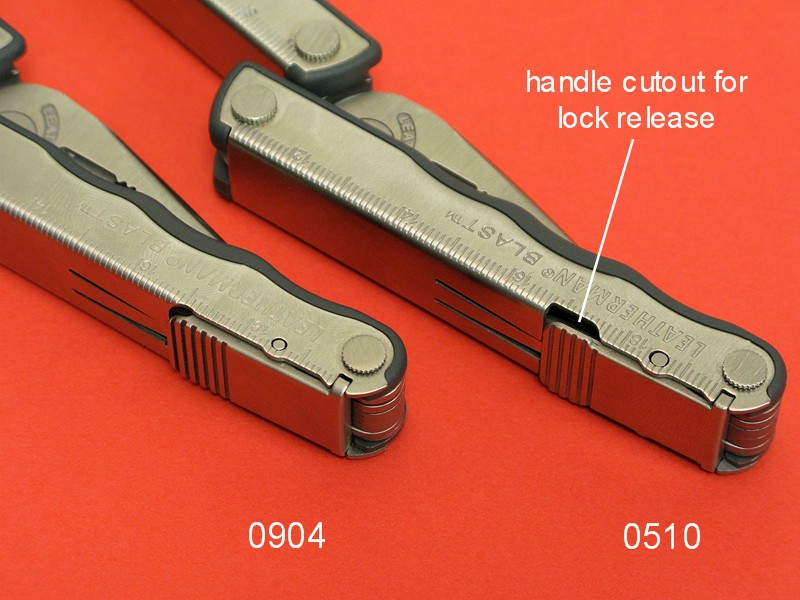

A larger cutout in the handle allows the T-shaped release lever to be pressed easier
|
|

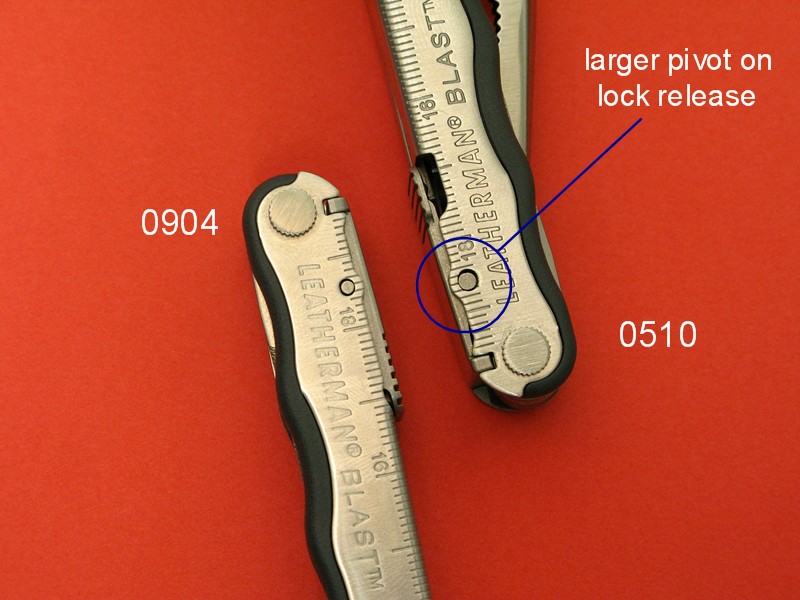

The new lever was given larger diameter pins to pivot on
|
|

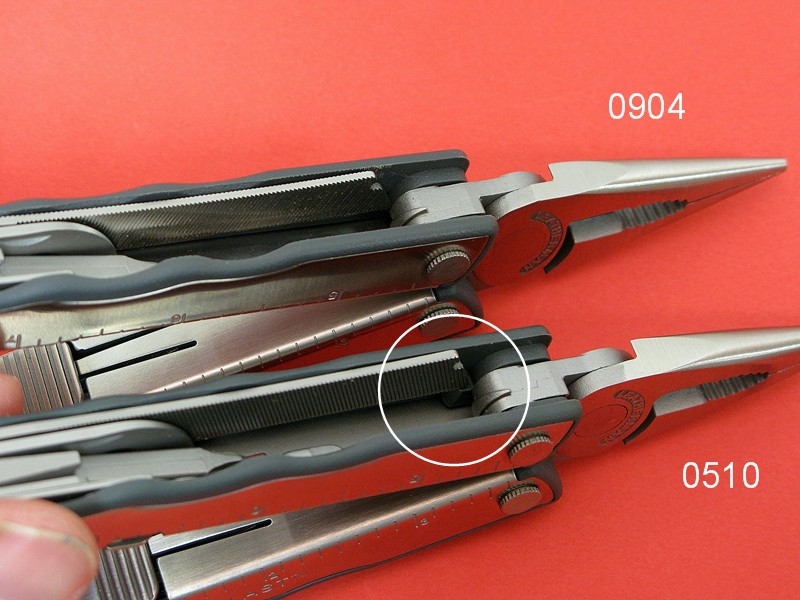

At some point, a small ledge was added for the saw and file to stop against.
|
|

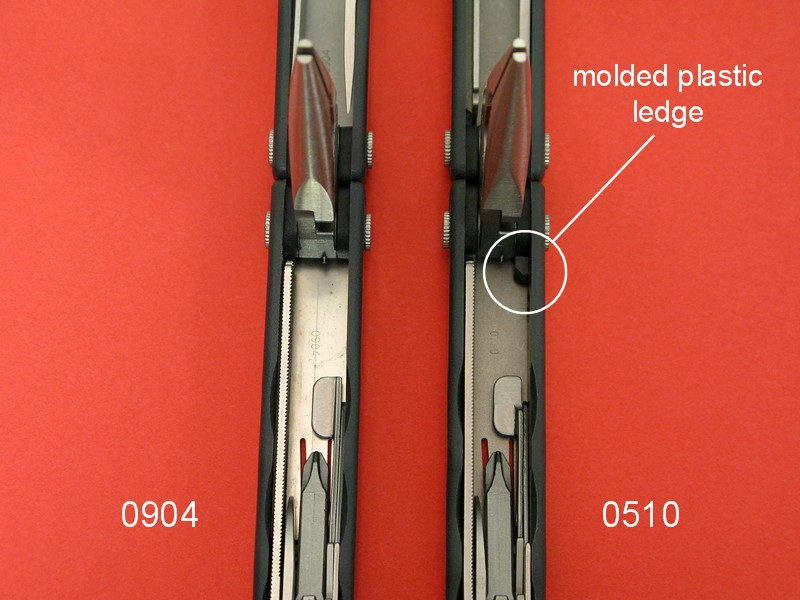

The ledge was molded in as part of the plastic Zytel handle liners
|
|

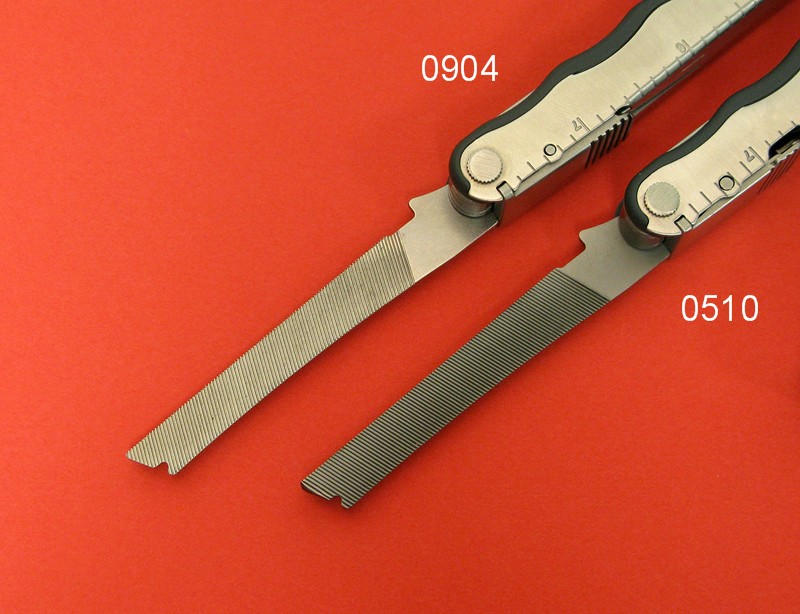

The file was also changed, from the early one with razor sharp cut teeth, to a later one with shallower less aggressive teeth
|
|

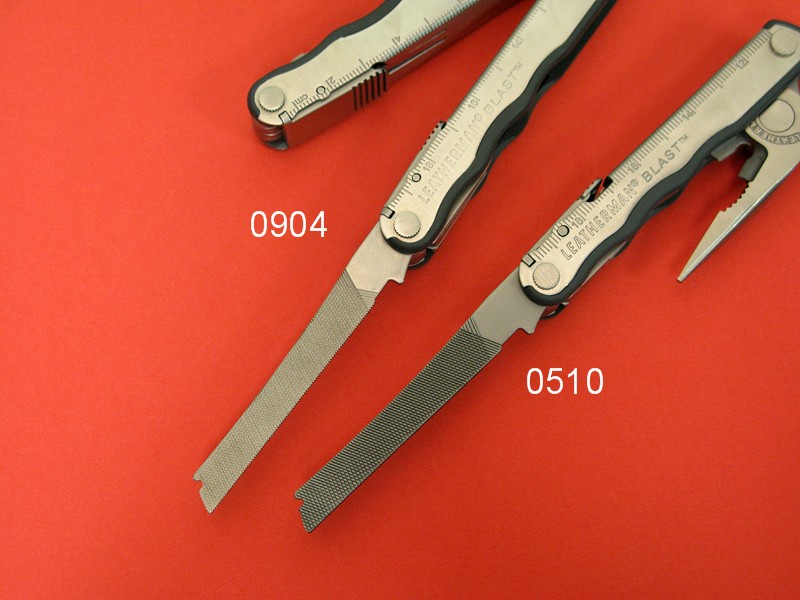

Back sides of files
|
|
The nail nick on early Blasts was on the outboard side of the knife blade...
|
|

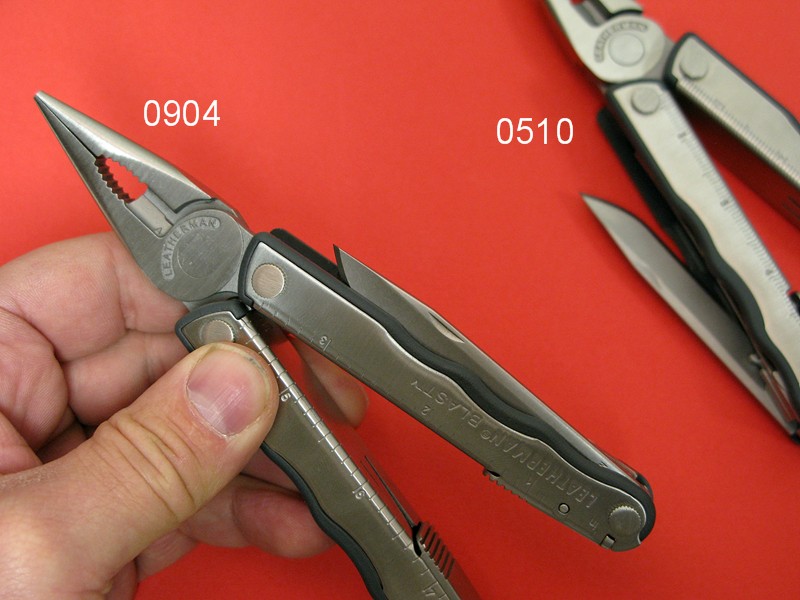

...it was sometimes difficult to reach the nail nick with your fingernail
|
|

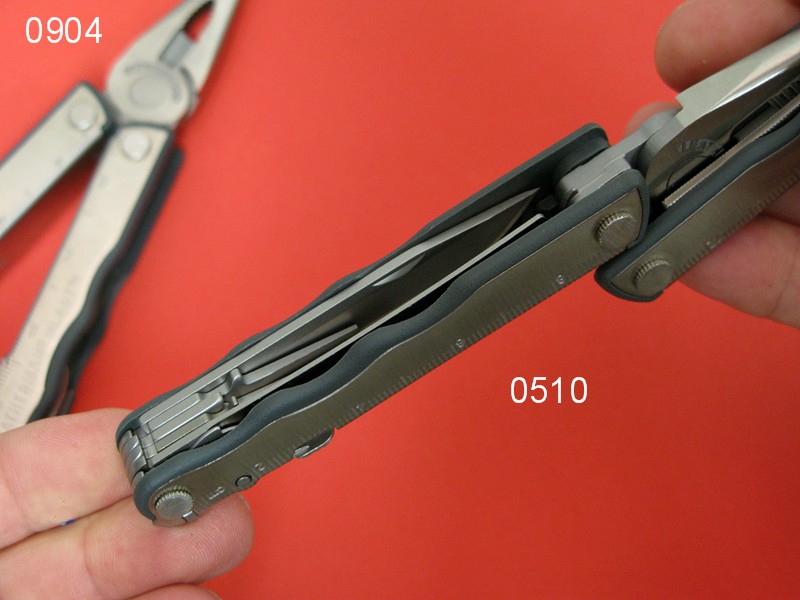

Later, the nail nick was moved to the inboard side of the blade, which made for improved access
|
|
