Pliers

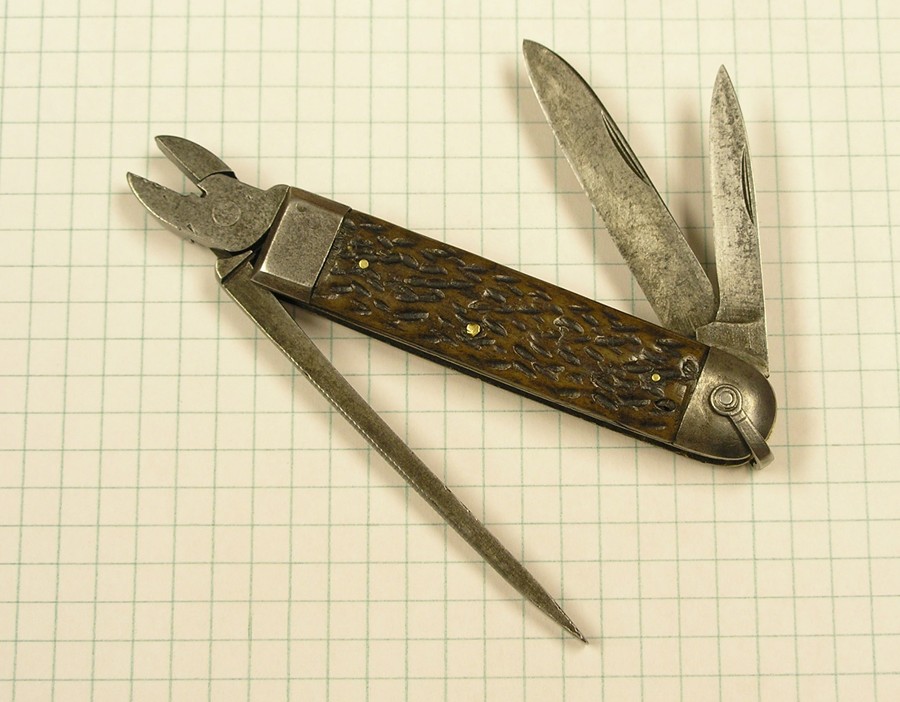

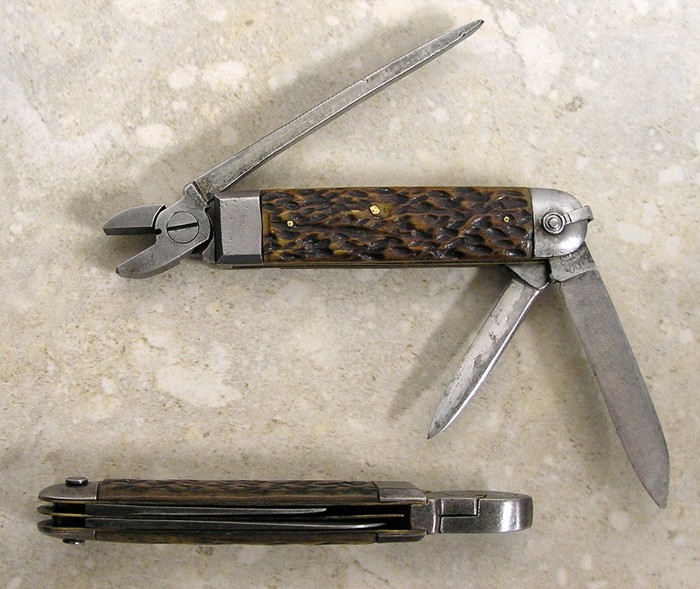

Plier jaws on the Morley are small, although useful jaw opening size is on par with the Barnett. Fine serrations run the length of both jaws. A bypass wire-cutter notch is located near the base of the pivot. The diameter of wire to be cut is somewhat limited by the small width of the cutting groove.Handles/Frame
Handle scales are of jigged bone, with steel bolsters on either end. Brass pins hold the scales onto brass liners. (Produced in the days before stainless steel, the use of brass to avoid corrosion was a recognized mark of quality.)Blades and Tools

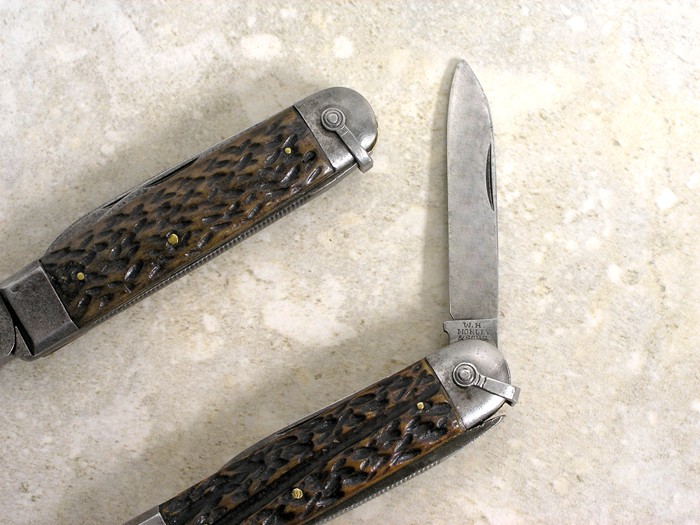

The Morley came equipped with 2-1/2" long spear point knife blade, and a smaller rather stoutly built pen knife blade that could double as an awl when needed.Locking Mechanism
Like most tools and knives from this era, the blades do not lock in place.Other Features

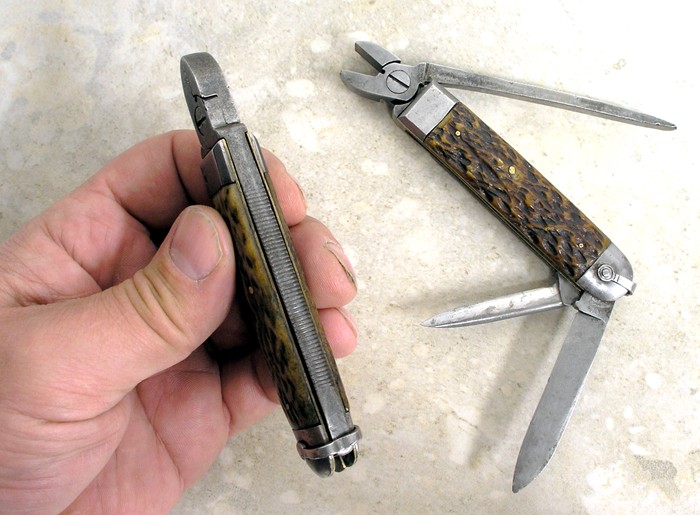

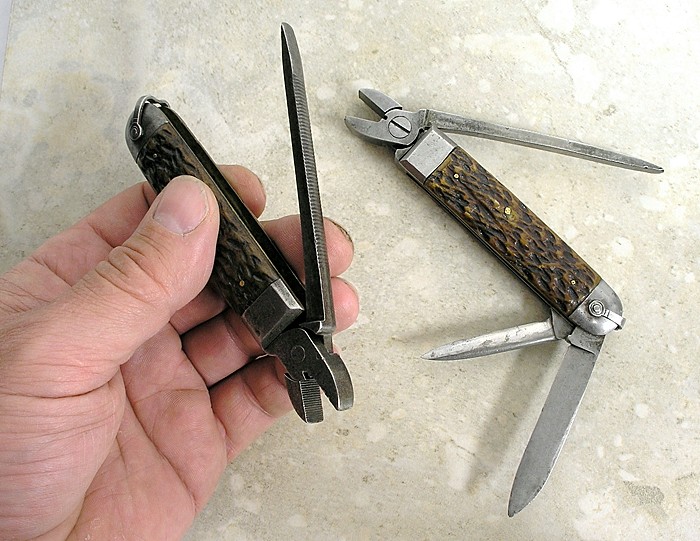

The solid handle of the pliers had ridges running along the length of it for grip, and the far end was tapered to a blunt point. In this fashion, the handle could be used as a flathead screwdriver, or as a pry bar.A bail was used to hold the plier handle shut when not in use.
Sheath
None.Dimensions
- Folded length = 4-1/2" (115mm)
- Unfolded length = same
- Thickness = 5/8" (15mm)
- Weight = 3.6 oz (102g)
