Radius

Radius A most unusual device, the Gerber Radius features oversize plastic handles and fat, side-deploying blades and tools. The layout is unique among current multitool design. It is the first tool from a major manufacturer to utilize plastic instead of metal in a load bearing area.



Radius views

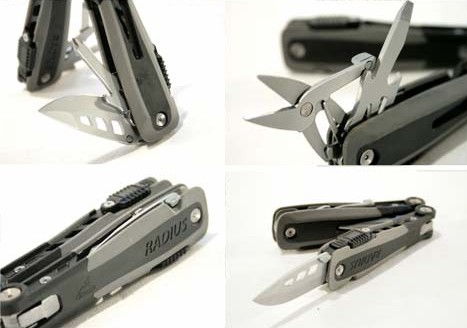

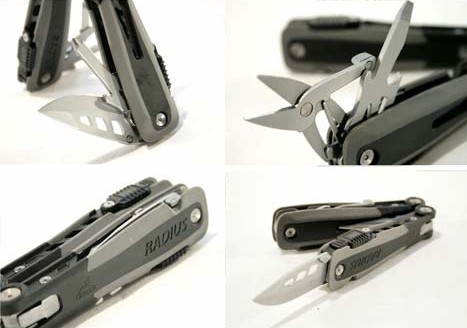

Gerber Radius, various views

Jaws

The plier jaws on the Radius are spring loaded. They come equipped with fine serrations near the tips, a gripping area below that, and a wire cutter area near the pivot. A hard wire notch is included.

Somewhat unusual is the fact that the wire cutters are anvil type, as opposed to the more common bypass type wire cutters on multitools.

Handles/Frame

The main basis for the design of the Radius is its handles. They are constructed primarily from plastic, with steel reinforcement in the plier pivot and blade pivot areas. No doubt in order to achieve the necessary strength, the handles themselves were made quite large. Soft rubber molded overlays give the tool a more comfortable grip.

Also unusual are the way the blades and tools unfold from the sides of the handles. Note this does allow easy access to the blades, regardless of whether the tool is folded or unfolded.

Blades and Tools

  • knife blade with thumb stud, 2.35" long (60mm)
  • flat phillips screwdriver blade with wire stripper notch
  • combination cap lifter/flathead screwdriver
  • spring loaded scissors, with thumb stud

Locking Mechanism

All four of the blades and tools lock open. Lock release is accomplished by plastic slider switches on the backside of the handles.

Other Features

None.

Sheath

Lightweight nylon construction, with snap closure. Lower portion of the tool is contained in a "pouch" while upper portion is held in with a strap. Vertical carry only.

Dimensions

  • Folded length = 4.8" (122mm)
  • Unfolded length = 7.2" (183mm)
  • Thickness = 1.25" (32mm)
  • Weight = 9.4 oz (270g)

Variations

None.

History

Introduced in 2007. Manufactured in China.
None.
