CS4

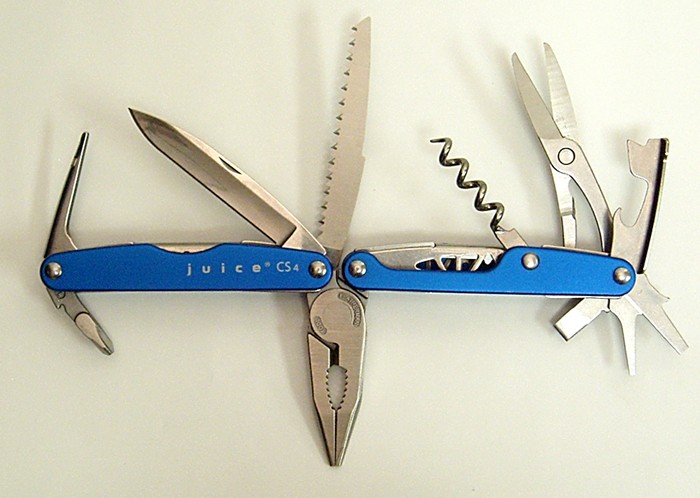

Juice CS4 The CS4 shares the same double-wide asembly as the KF4. (outside-opening blades are arranged on both sides of the plier head/screwdriver layer) This set-up allows for four long-blade layers, but makes it more difficult for some users to access the center mounted screwdrivers.



Juice CS4

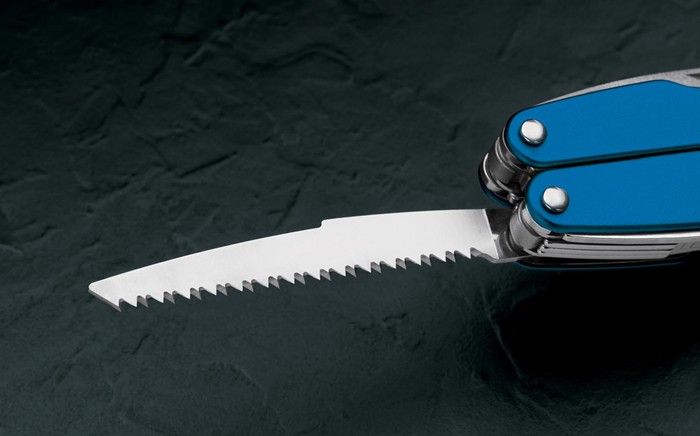

Saw Blade
Juice CS4

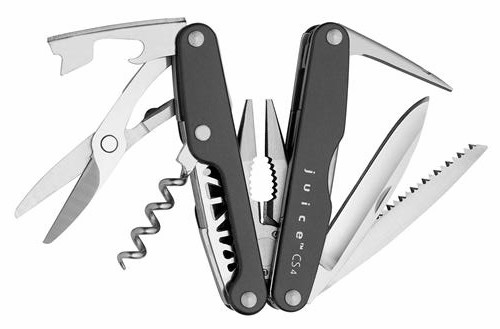

Storm Gray
Juice CS4

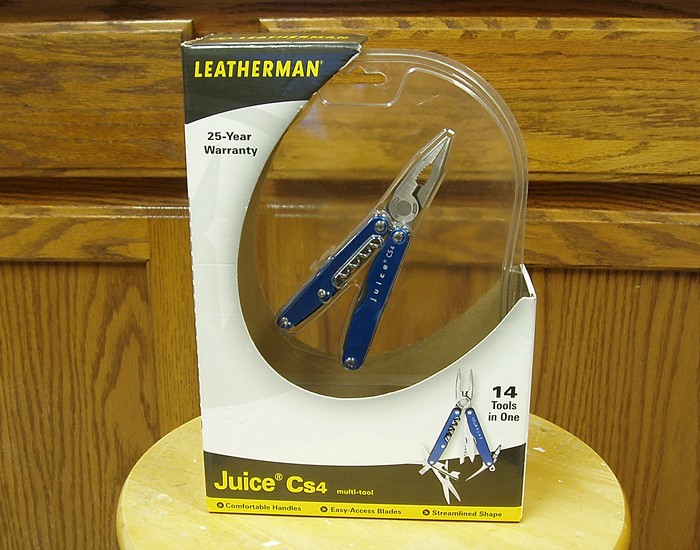

CS4 clam pack

Jaws

  • Profile is semi-needlenose
  • Features include fine serrations, a gripping area, and a wire cutter area. (with hard wire notch)
  • Brushed stainless finish

Handles/Frame

Sandwich/layer construction of the handles is more thoroughly described on the Juice Series page. On the CS4, there is a large cutout area in one handle to provide clearance for the corkscrew.

LEATHERMAN and PAT PEND are stamped along the spine of both handles.

Pivots

The Juice series features round head rivets for pivots instead of the traditional Leatherman knurled screws.

Blades and Tools

Outside opening
  • Plain edge knife blade, drop point profile, double side grind bevel. Measures 2-1/2" long. (60mm)
  • Awl, with sewing eye (*note awl blades on Juice tools are not factory sharpened)
  • Saw blade, double cut (*awl blade must be opened in order to access saw)
  • Scissors, backspring loaded. (*serrated section out near the tips)
  • Corkscrew
  • Combination corkscrew assist/bottle opener/can opener. (*note that from the factory, can opener blades on Juice tools are not sharp enough to open cans)
Inside opening
  • Medium flathead screwdriver
  • Small flathead screwdriver
  • Eyeglass screwdriver
  • Phillips screwdriver (square profile suitable for Leatherman Removable Bit Driver accessory)
  • Lanyard attachment ring

Blade characteristics

  • None of the blades or tool lock open

Sheath

See Juice Accessories.

Dimensions

  • Length open = 5-1/4" (134mm)
  • Length closed = 3-1/4" (83mm)
  • Width closed = 1-1/4" (32mm)
  • Thickness = 3/4" (20mm)
  • Weight = 5.3 oz (152g)

Variations

  • The standard color offerings for the CS4 model are Glacier Blue and Storm Gray.
  • Other tools in this family can be found on the Juice Series page.

More Info
